Model | 700N | 1100N | 1500N | 1800N | |||
---|---|---|---|---|---|---|---|
Max. output torque | 20Nm | 25Nm | 30Nm | 35Nm | |||
Rated output torque | 16Nm | 21Nm | 26Nm | 31Nm | |||
Output speed | 40rpm | 40rpm | 40rpm | 40rpm | |||
Output shaft/hollow shaft | φ25.4 mm | φ25.4 mm | φ25.4 mm | φ25.4 mm | |||
Static holding torque | 200Nm | 200Nm | 200Nm | 200Nm | |||
Door area | ≤14 m² | ≤20 m² | ≤24 m² | ≤28 m² | |||
Input voltage | 110-127V or 220-240V | 110-127V or 220-240V | 110-127V or 220-240V | 110-127V or 220-240V | |||
Motor power | 230W | 280W | 330W | 380W | |||
Control system | 24V DC | 24V DC | 24V DC | 24V DC | |||
Thermal protection | 105 °C | 105 °C | 105 °C | 105 °C | |||
Max. cycles per hour | 20 cycles | 20 cycles | 20 cycles | 20 cycles |
All of our door motors garage are CE, RCM & TUV certified for the entire European & Australian market.Our products have EN12453 & EN12445. and include all of the options to make your products smart and compatible in home automation.
Single C rail with chain/belt | C rail cut in 3 pieces with chain/belt | |
---|---|---|
Length | For doors up to | For doors up to |
3150mm | 2300mm | 2300mm |
3500mm | 2700mm | 2700mm |
3800mm | 3000mm | 3000mm |
4000mm | 3200mm | 3200mm |
With multiple installation options, the Multi-Drive can be adapted to different garage types, door sizes and hardware types, making it a universally adaptable solution for installers and users.

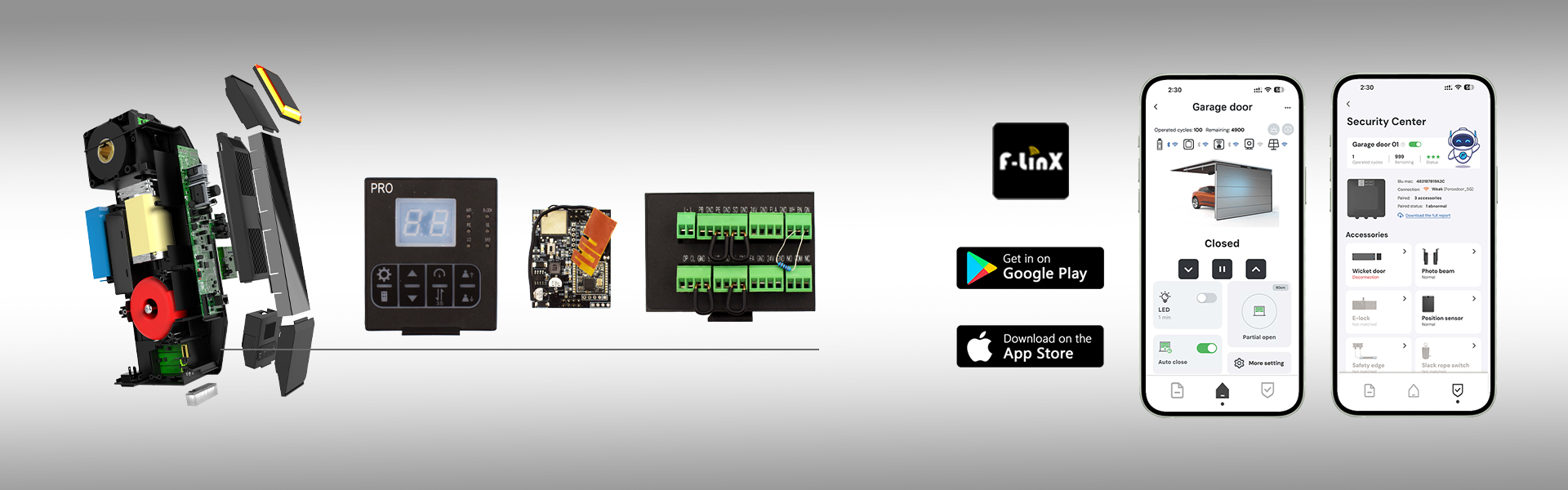

Modular design, customers can assemble or replace parts DIY.
The slim design requires little installation space when side instslled.
The FMK Multi-Drive combines wireless security and multi-frequency technology for a secure, convenient, and user-friendly garage door opening experience.
Works with wireless E-lock to provide you with optimal security.
