INDUSTRIAL DOOR OPENER

AC 140

These robust and reliable systems are designed to efficiently open and close heavy-duty doors, providing seamless access for vehicles, machinery and personnel.

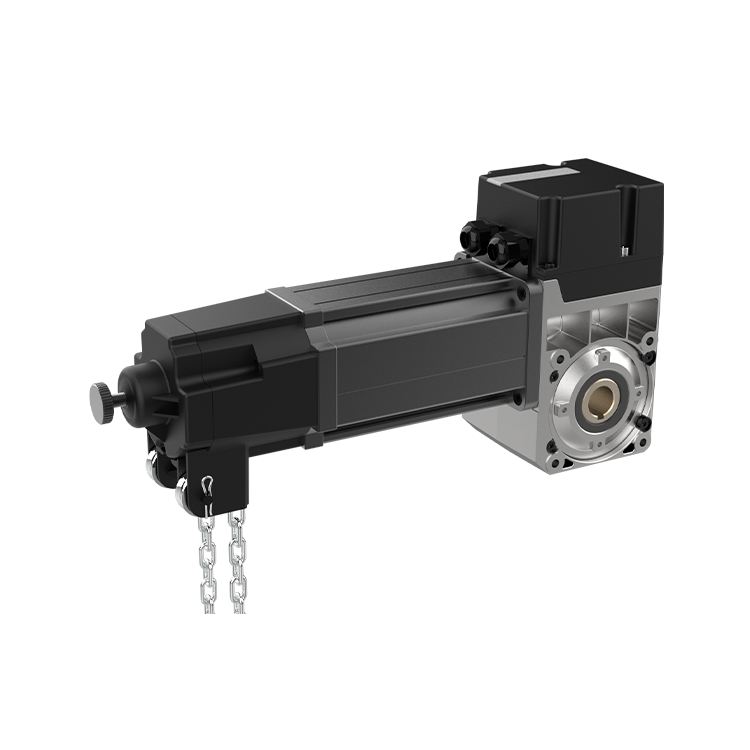

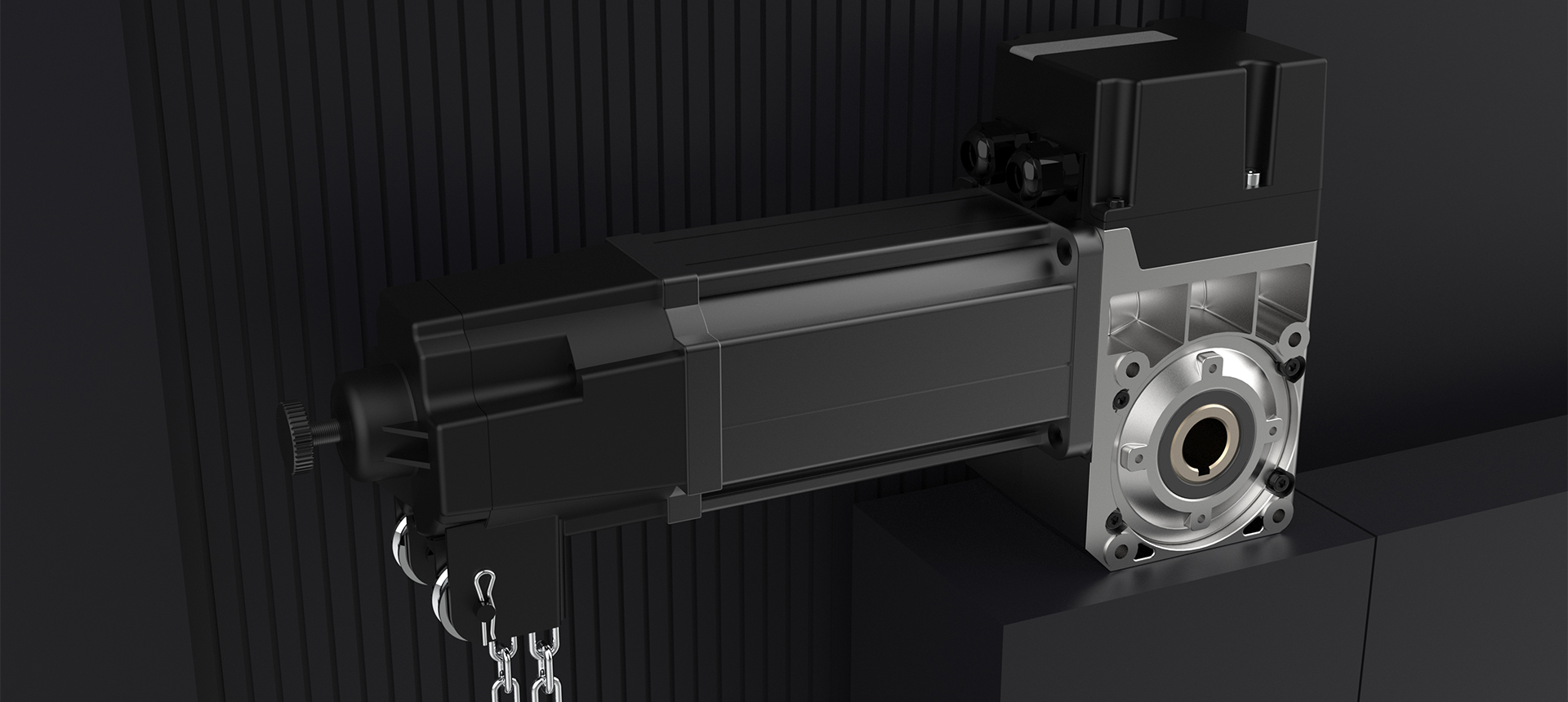

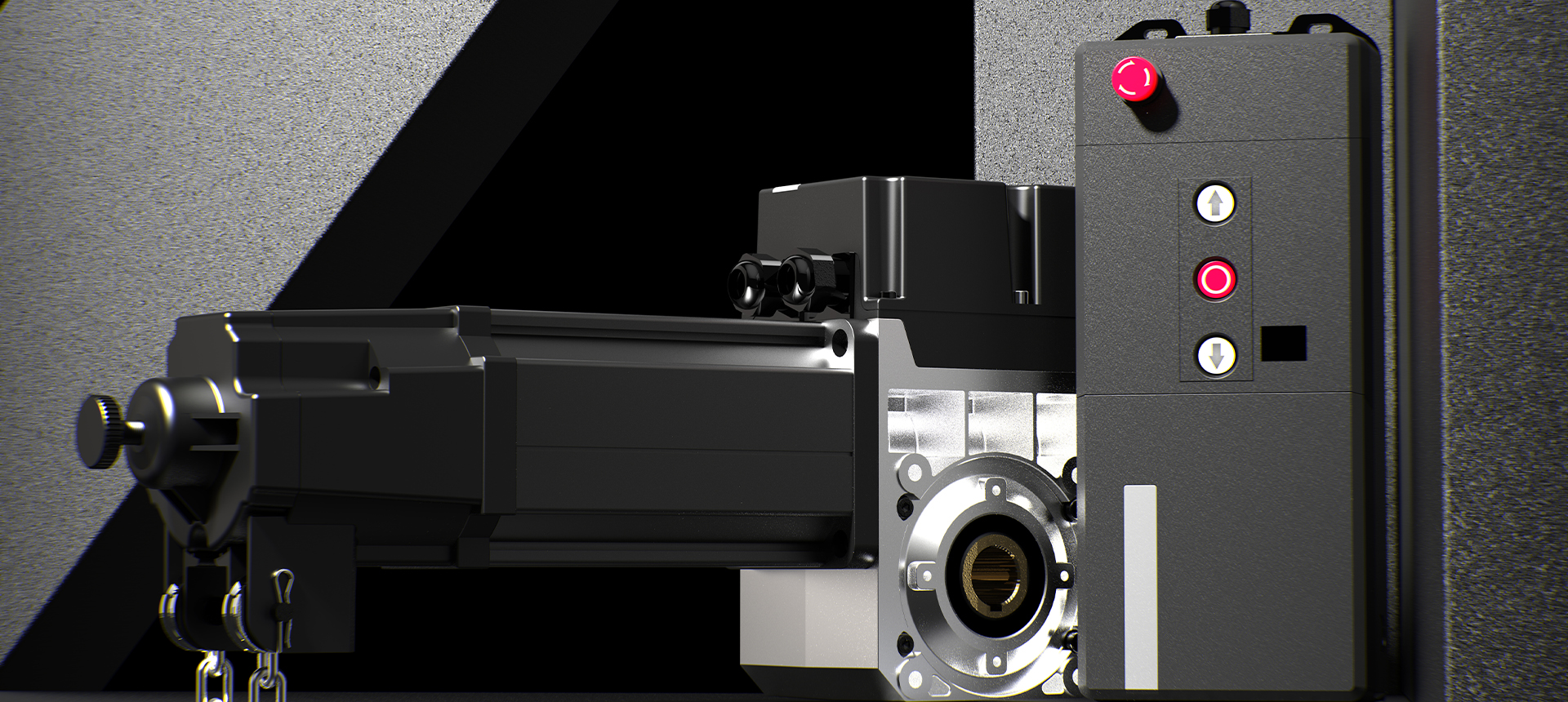

AC 140NM INDUSTRIAL DOOR OPENER

Recommended Door Size:

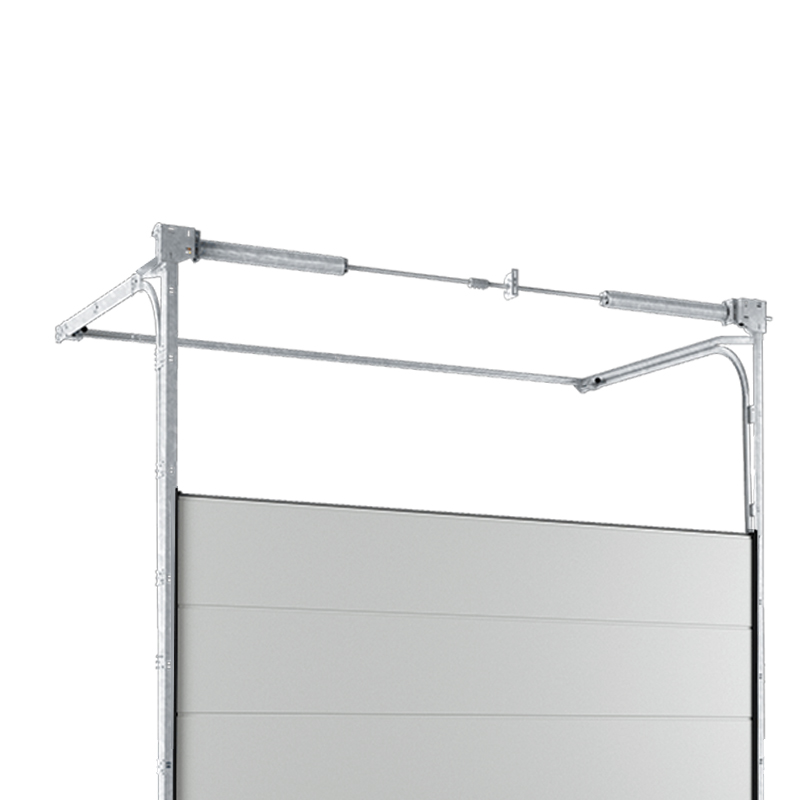

  • Standard Lift

    Size, Weight & Height:

    - Up To 40 M²

    - Up To 520 Kgs

  • High Lift

    Size, Weight & Height:

    - Up To 40 M²

    - Up To 520 Kgs

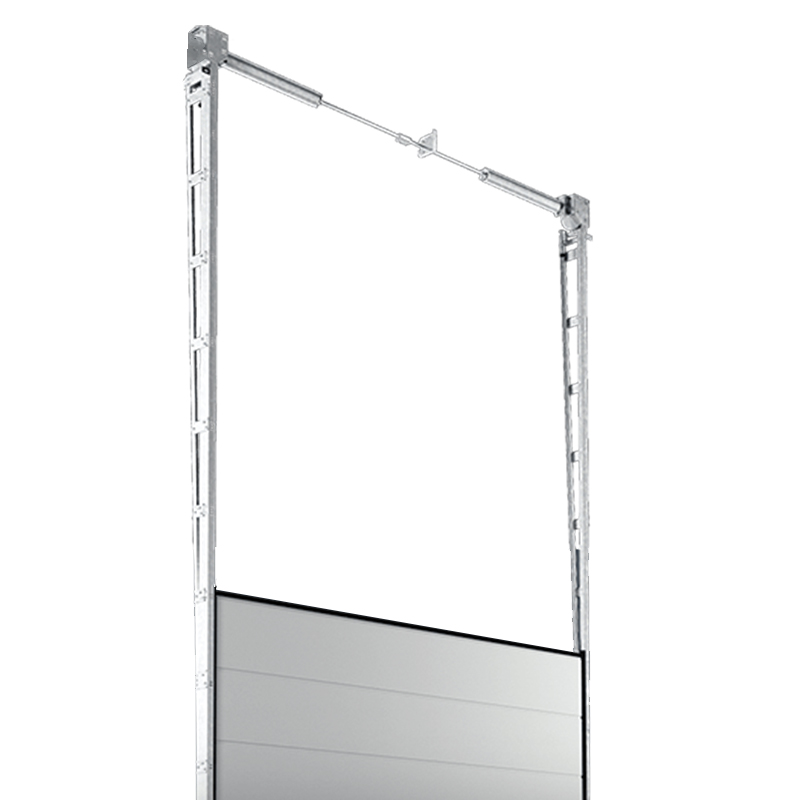

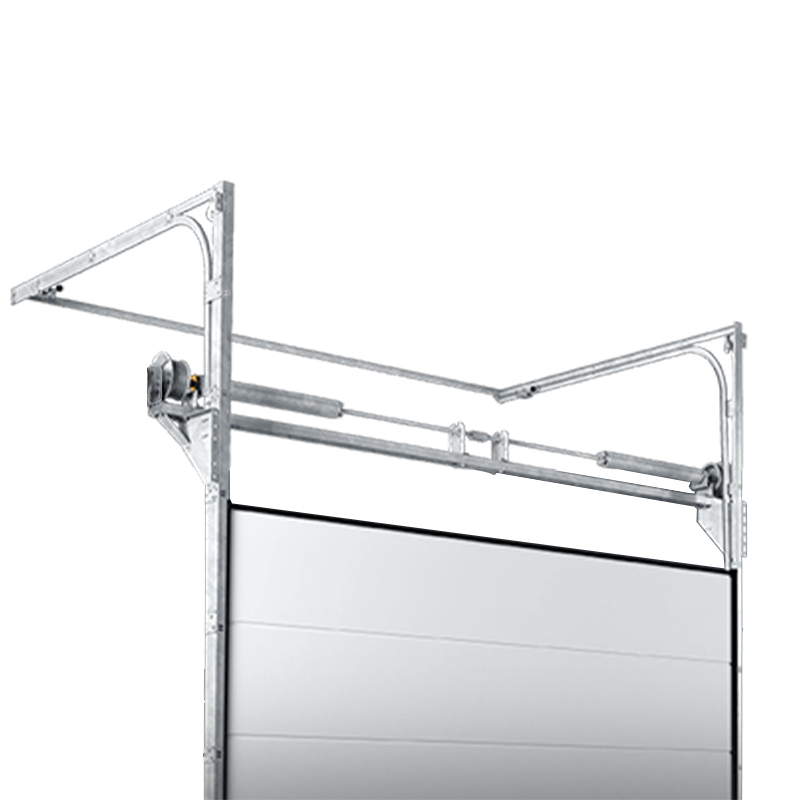

  • Vertical Lift

    Size, Weight & Height :

    - Up To 40 M²

    - Up To 520Kgs


    PARAMETER
    Max. output torque150NM
    Rated output torque140NM
    Output speed24 rpm
    Output shaft/hollow shaftφ25.4mm/φ31.75 mm
    Static holding torque400NM
    Door area≤30m²
    Input voltage110V/220V(1+10%),  380V-420V
    Standard Frequency50HZ
    Motor power0.6KW
    Current3.0A
    Control system24V DC
    Thermal protection temperature105 °C
    Max. cycles per hour20 cycles
    Class of protectionIP54

    Limit switch range

    		15 turns
    Duty ratingS3=40%ED
    Temperature range一 20°C～+60°C

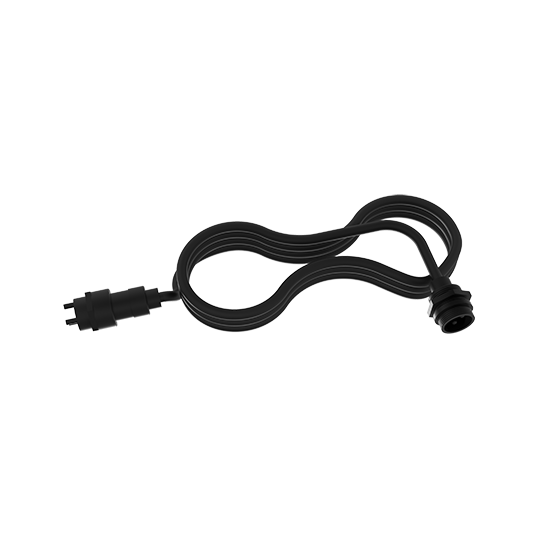

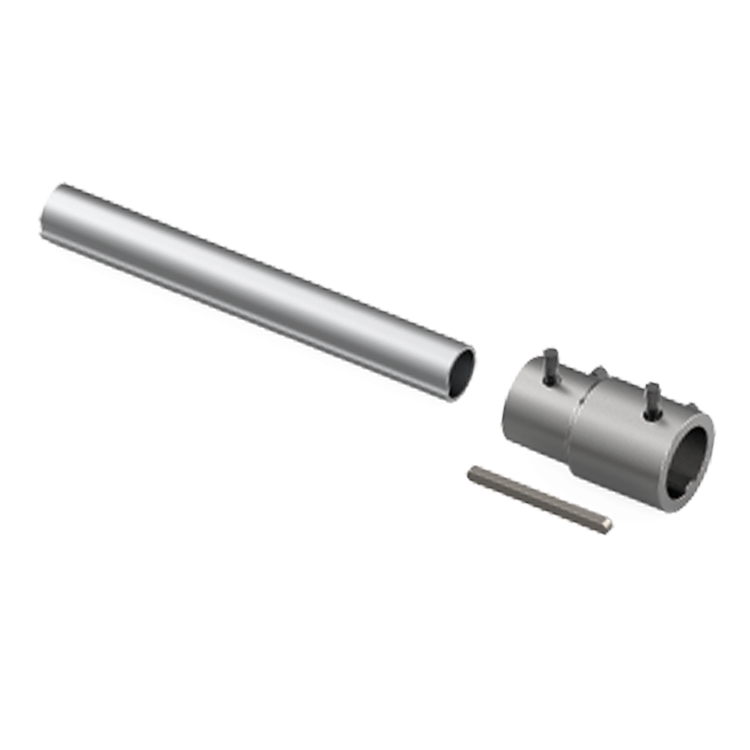

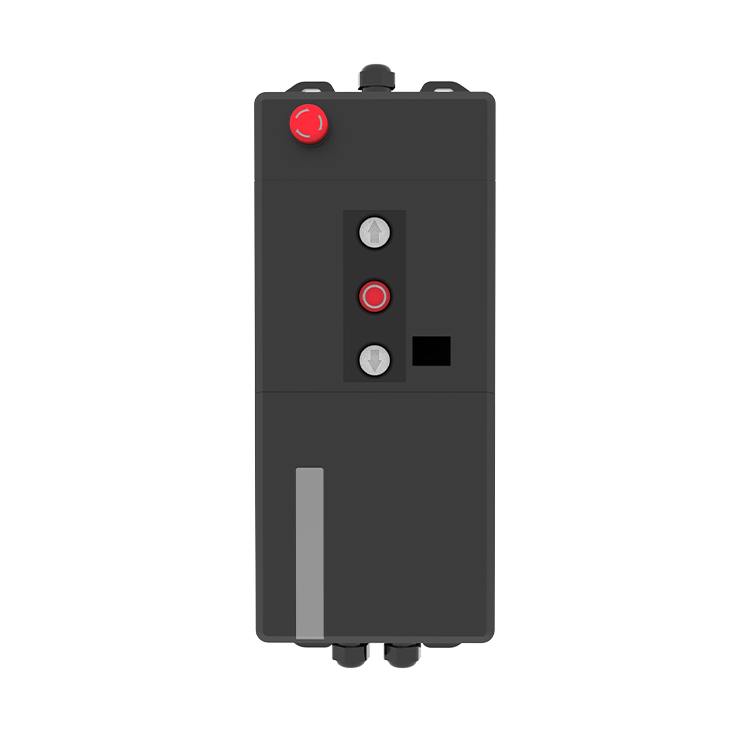

    • STANDARD KIT

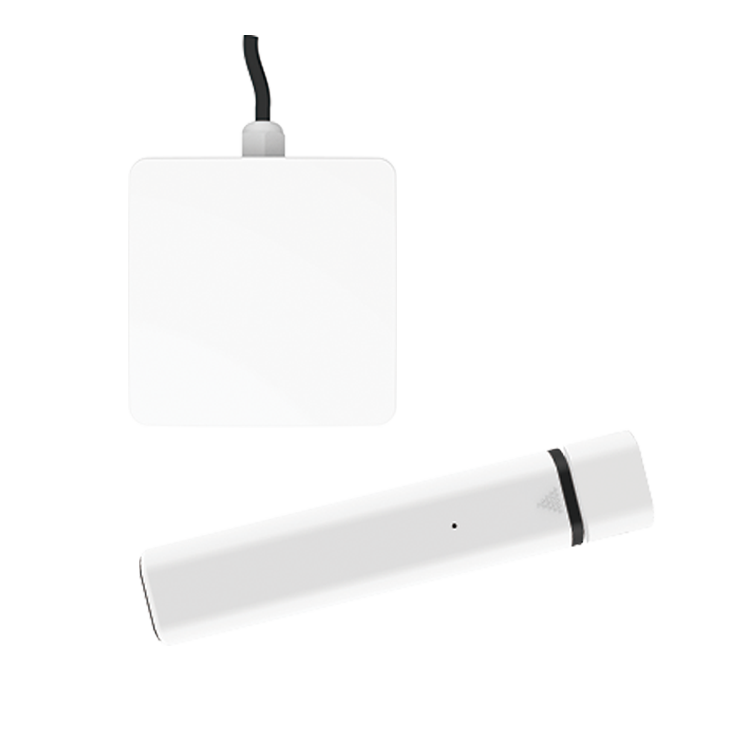

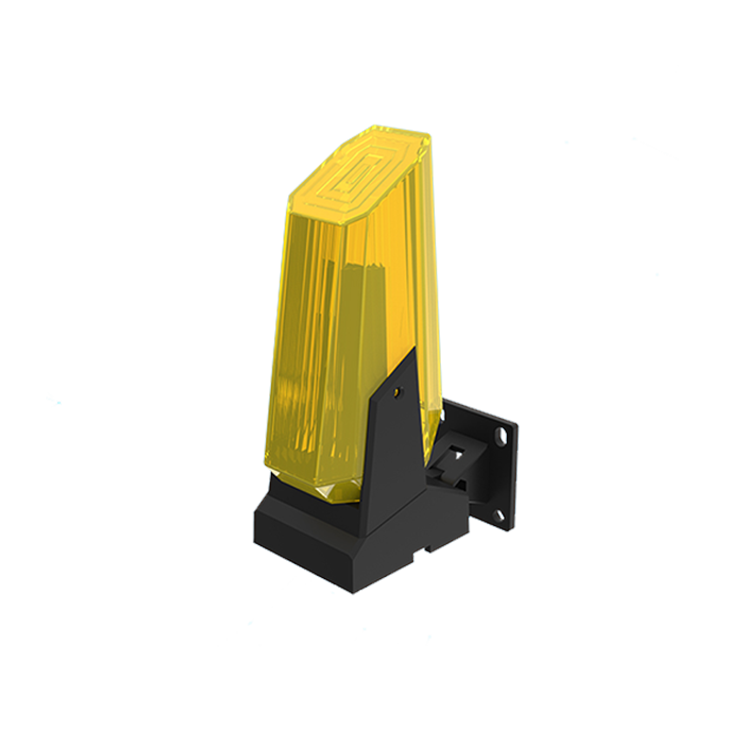

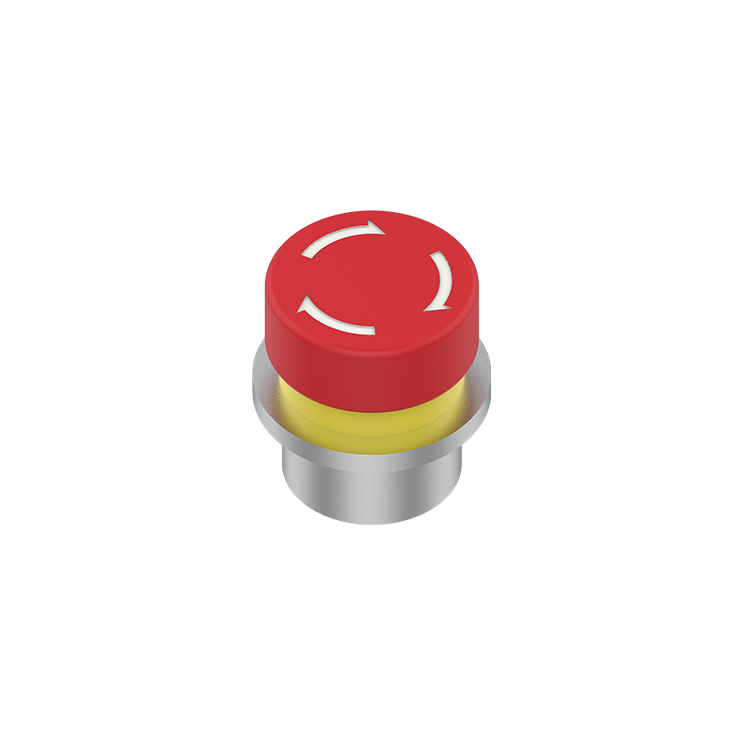

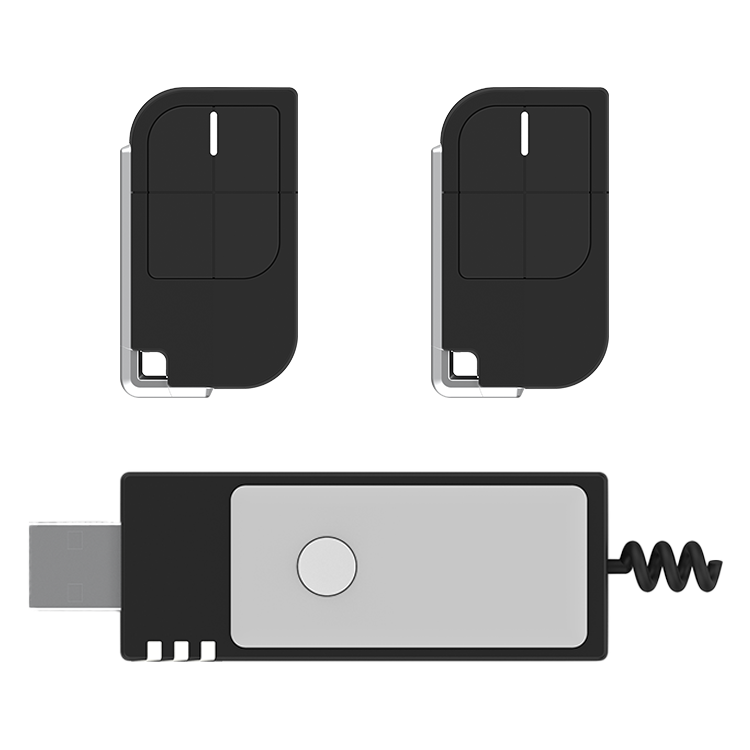

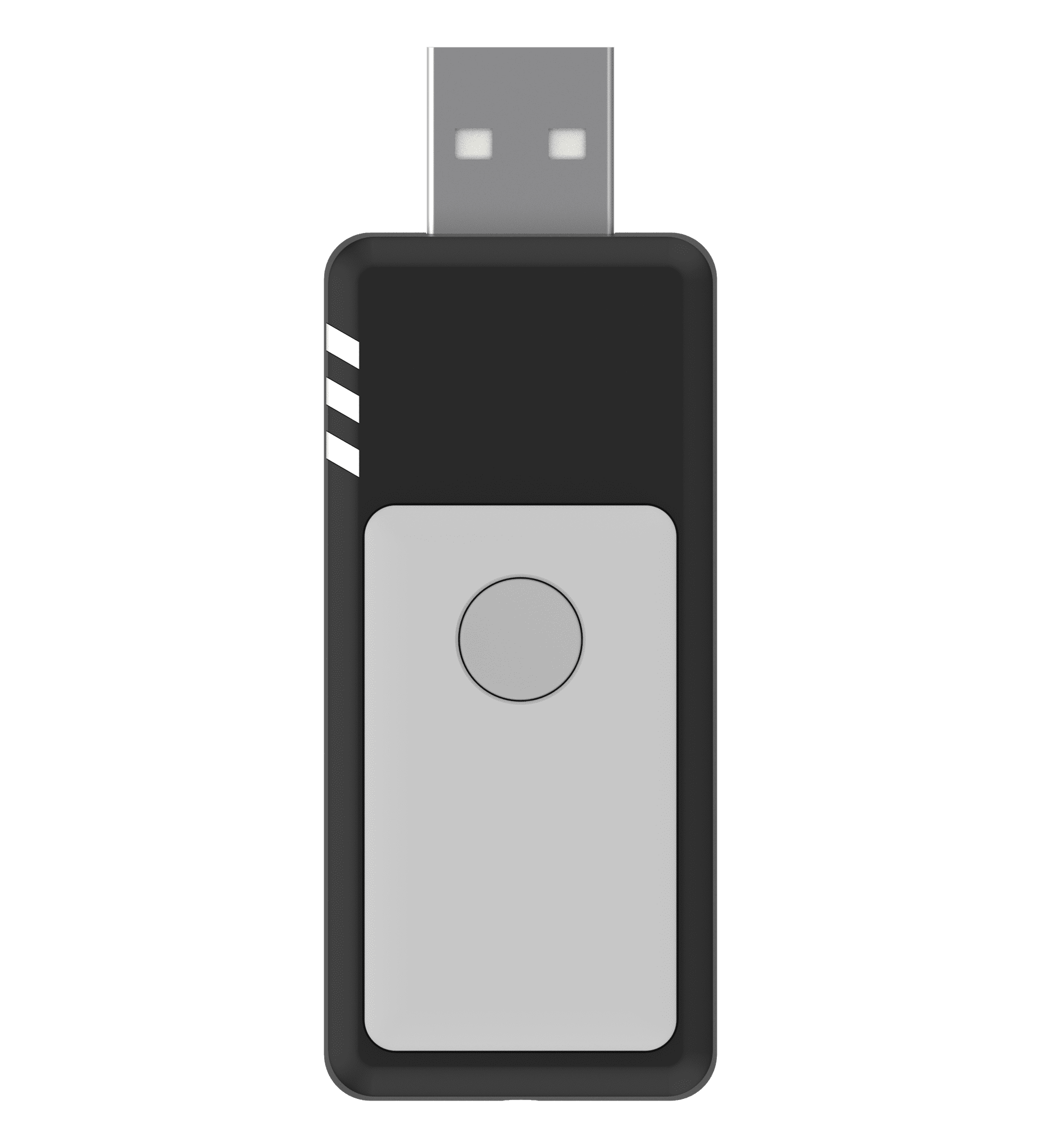

    • OPTIONAL ACCESSORIES
